VTK
400W / 450W / 500W / 550W
COUGAR VTK series is a decent PSU with Bronze efficiency certified with flawless power delivery. The extreme reliability and low acoustic sound, it is the nicest choice for building up the gaming system.
VTK
400W / 450W / 500W / 550W
COUGAR VTK series is a decent PSU with Bronze efficiency certified with flawless power delivery. The extreme reliability and low acoustic sound, it is the nicest choice for building up the gaming system.

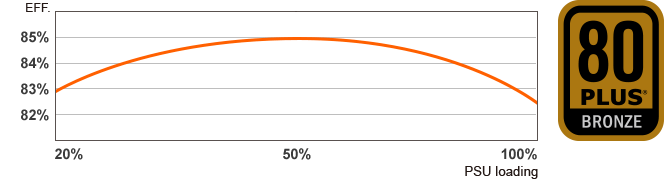

Extremely High Efficiency
VTK series is 80-Plus BRONZE certified and provides stable output and high efficiency top to 85% at different environments.

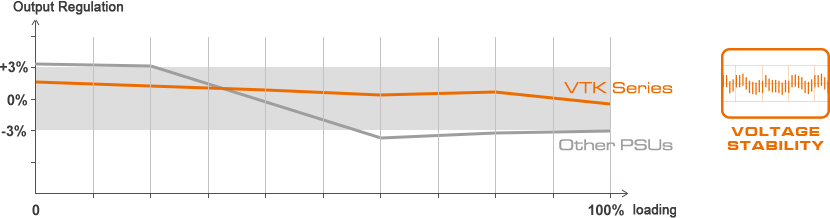

Ultra Stable Voltage Outputs
Providing improved efficiency levels and a stable performance, as well as perfect regulation within
±3% at regular DC outputs.
According to Intel’s Design Guide for Power Supplies, the DC output voltages should remain within the ±5% regulation ranges in 3.3V, 5V and 12V rails.
120mm Ultra-Silent Fan
Ultra-quiet120mm fan with automatic thermal speed control for an optimal speed-noise ratio.

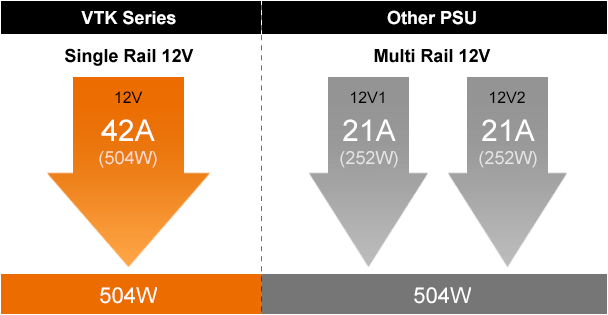

Massive Single +12V DC Output
Extreme Performance for Powerful Graphics Systems
Comparison based on VTK550’s performance data.

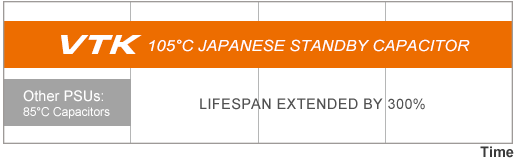

Assigned Japanese Components
105ºC Japanese standby capacitor will keep providing the stability and durability for PSU.
VTK includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
The Japanese polypropylene capacitor minimize the
noise during the voltage transition.
VTK includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.

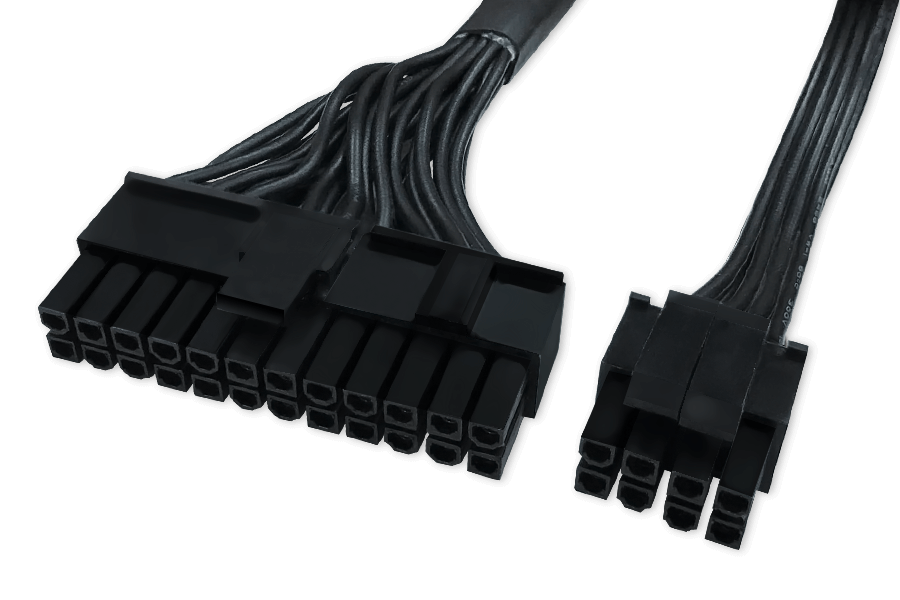

Cable Management
The VTK series uses black, flat, and soft cables for connectors, it will be more efficient and convenient on installing and managing your PC building.
Features
80-PLUS® BRONZE Certified
105°C Japanese Standby Capacitor
Enhanced PSU Lifespan.
Ultra-Stable Voltage Output
It provides stable output to keep PC running stably at different environments.
Supports Multi-GPU Technology
Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.
PFC value up to 99%
Clean and reliable power.
Strong protections with OCP, SCP, OVP, UVP and OPP.
规格
| Model Name | AC Input | DC output | |||||
| +3.3V | +5V | +12V | -12V | +5Vsb | Total | ||
| VTK 400 CGR VK-400 |
100-240V 50-60Hz 8-4A |
15A | 15A | 30A | 0.3A | 2.5A | 400W |
| 105W | 360W | 3.6W | 12.5W | ||||
| VTK 450 CGR VK-450 |
100-240V 50-60Hz 8-4A |
15A | 15A | 34A | 0.3A | 2.5A | 450W |
| 105W | 408W | 3.6W | 12.5W | ||||
| VTK 500 CGR VK-500 |
100-240V 50-60Hz 10-5A |
16A | 18A | 38A | 0.3A | 2.5A | 500W |
| 110W | 456W | 3.6W | 12.5W | ||||
| VTK 550 CGR VK-550 |
100-240V 50-60Hz 10-5A |
16A | 18A | 42A | 0.3A | 2.5A | 550W |
| 110W | 504W | 3.6W | 12.5W | ||||

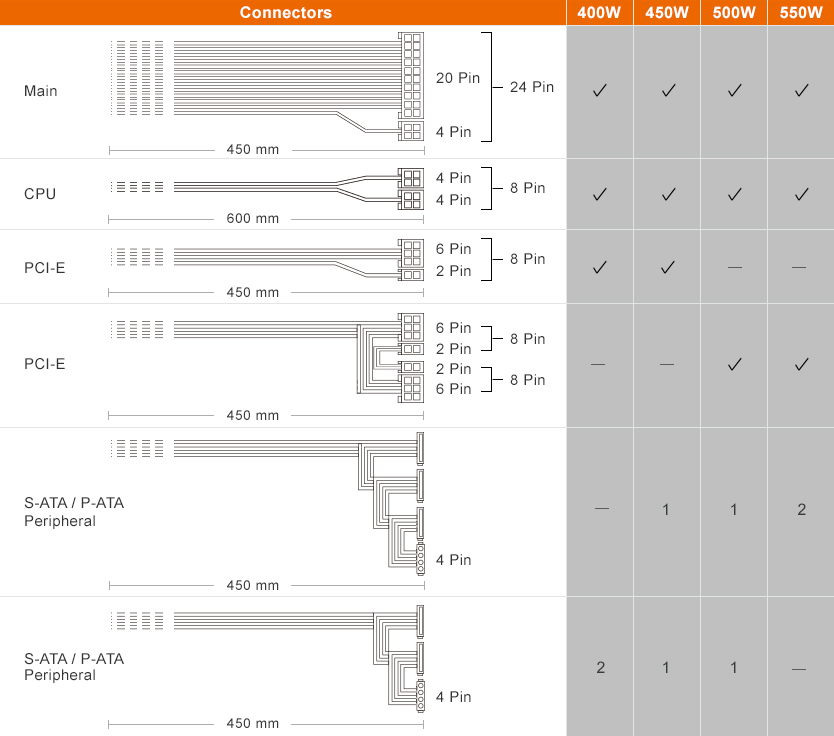

| Connector | Main | CPU | Peripherals | S-ATA | PCI-E |
| Pin | 24(20+4) Pins | 8(4+4) Pins 8 Pins |
4 Pins | 5 Pins | 8(6+2) Pins |
| VTK 400 | 1 | 1 | 2 | 4 | 1 |
| VTK 450 | 1 | 1 | 2 | 5 | 1 |
| VTK 500 | 1 | 1 | 2 | 5 | 2 |
| VTK 550 | 1 | 1 | 2 | 6 | 2 |
包装信息
Protection
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
Safety Standards
