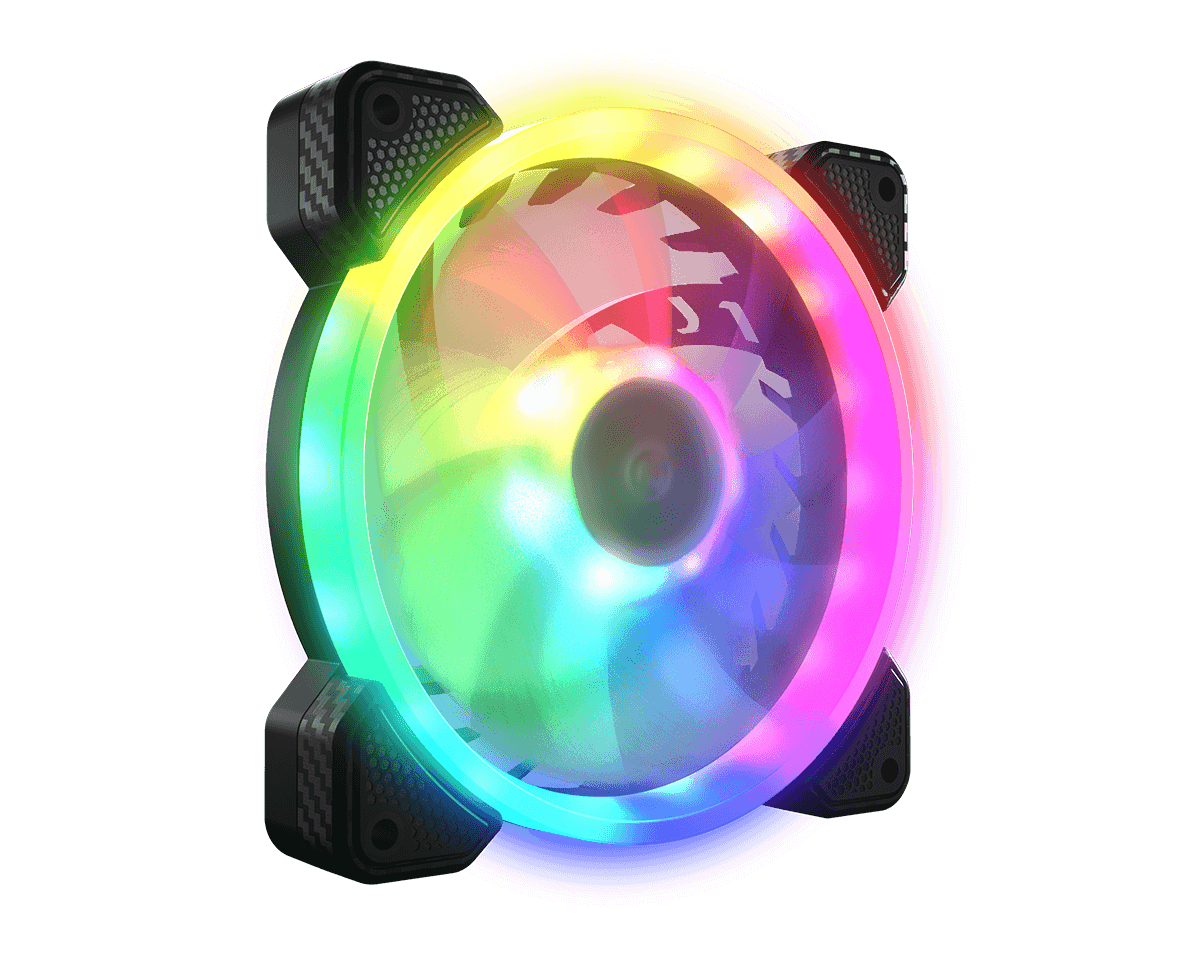

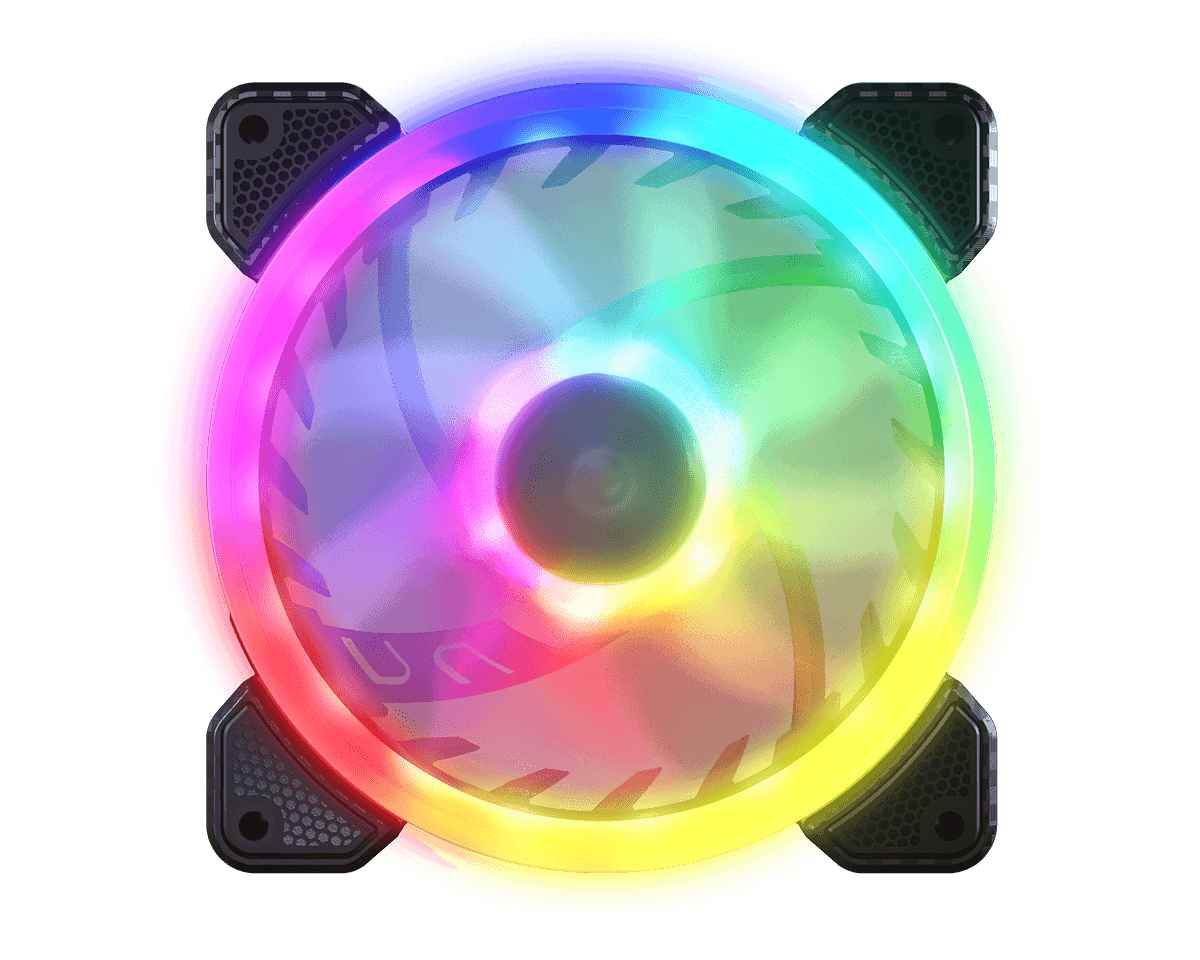

VORTEX

VX 120

PWM HDB

ARGB Case Fan with Dynamic HDB Rearing

COUGAR VORTEX VX120 high-performance cooling fan not only provides the ultimate ARGB lighting effects for your chassis but also improves the cooling effect efficiently. There is no doubt that VX120 is definitely the best part of ARGB gaming PC system.

VORTEX

VX 120

PWM HDB

ARGB Case Fan with Dynamic HDB Rearing

COUGAR VORTEX VX120 high-performance cooling fan not only provides the ultimate ARGB lighting effects for your chassis but also improves the cooling effect efficiently. There is no doubt that VX120 is definitely the best part of ARGB gaming PC system.

The Best ARGB Lighting Effects

With the built-in 5V-ARGB ports and 24 ARGB lamp beads, COUGAR VORTEX VX120 cooling fan provides various and colorful lighting effects from anywhere through the light ring and the fan blade at the same time. Because of this, players can enjoy wonderful lighting effects from any angle of the fan.

The Best ARGB Lighting Effects

With the built-in 5V-ARGB ports and 24 ARGB lamp beads, COUGAR VORTEX VX120 cooling fan provides various and colorful lighting effects from anywhere through the light ring and the fan blade at the same time. Because of this, players can enjoy wonderful lighting effects from any angle of the fan.

Great Cooling Capabilities & Durability

COUGAR’s patented VORTEX fan frame design brings great performance by concentrating air flow. Hydro Dynamic Bearings (HDB) can extend the life of the fan and reduce operating noise effectively. Meanwhile, with PWM control function, it can be adjusted between the speed from 600 to 1500RPM automatically to fit different conditions, and makes sure for the best balance / extreme performance.

Hydro Dynamic Bearings (HDB)

Speed from 600 to 1500RPM with PWM control

Anti-Vibration Damper

COUGAR VORTEX VX120 cooling fan is equipped with rubber dampers at four edges of the fan, which performs excellent to avoid vibration. It can reduce noise from mounting gap or resonance in the chassis, and optimizes the silent performance of your PC system.

Anti-Vibration Damper

COUGAR VORTEX VX120 cooling fan is equipped with rubber dampers at four edges of the fan, which performs excellent to avoid vibration. It can reduce noise from mounting gap or resonance in the chassis, and optimizes the silent performance of your PC system.

ARGB SYNC with Motherboard Lighting Software

COUGAR VORTEX VX120 cooling fan supports ASUS AURA SYNC, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome software. Players can control the lighting mode with the motherboard application software to achieve full lighting synchronization without using additional program.
For more information, please check the official websites of ASUS, Gigabyte, MSI and ASRock.

ARGB SYNC with Motherboard Lighting Software

COUGAR VORTEX VX120 cooling fan supports ASUS AURA SYNC, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome software. Players can control the lighting mode with the motherboard application software to achieve full lighting synchronization without using additional program.
For more information, please check the official websites of ASUS, Gigabyte, MSI and ASRock.

Boost with Core Box V3

With COUGAR CORE BOX V3 controller (optional), COUGAR VORTEX VX120 cooling fan can maximize its performance.It not only allows players to create the exclusive high-performance cooling system but also having perfect ARGB lighting effect. So, this combo set must be the best choice for setting unique ARGB gaming PC.

规格

Model CF-VX12HB-RGB (Single package)
CF-VX12HB3-RGB (Three in one package)
产品名称 VORTEX ARGB VX120
Dimensions 120 x 120 x 25mm
Bearing Type Hydro-Dynamic Bearing
Speed 600-1500RPM ± 200RPM
Air Flow 48.98 CFM ± 10%
Static Pressure 1.04 mmH20 ± 10%
Acoustical Noise 29.8 dBA (Max)
RGB connection interface 3-Pin ARGB
RGB operating voltage 5 VDC
Operating voltage 12 VDC
Max. input power 1.68 W ± 10%
Weight 126g
Package Content
(Single package)
VORTEX ARGB VX120 x 1
Fan Screws
User Manual
Package Content
(Three in one package)
VORTEX ARGB VX120 x 3
Fan Screws
User Manual

包装信息

Single package Three in one package
产品料号 (P/N) 3MVX1201.0001 3MVX1203.0001
EAN 产品代码 4710483771873 4710483771880
UPC 产品代码 192554002965 192554002972
JAN 产品代码 4541995035593 4541995035609
产品净重 (不含包装) 157 (g) 492 (g)
产品毛重 (含包装) 190 (g) 596 (g)
产品尺寸(不含包装) (宽x高x深) 120 x 120 x 25 (mm) 120 x 120 x 25 (mm)
产品尺寸(含包装) (宽x高x深) 135 x 169 x 27 (mm) 140 x 190 x 82 (mm)

Safety Certifications
