MX410 Mesh-G RGB

Powerful Airflow and Compact Mid-Tower Case

MX410 Mesh-G RGB sports an attractive and compact design with a massive mesh front panel for better air flow performance. The integrated lighting button with built-in LED controller allows it to display amazing lighting effects. With a massive tempered glass left panel, MX410 Mesh-G RGB showcases a clean and tidy build. It has wider but more compact and powerful design, which allows you to have high-performance and abundant storage space.

MX410 Mesh-G RGB

Powerful Airflow and Compact Mid-Tower Case

Excellent Looks with Superior Airflow

MX410 Mesh-G RGB’s front panel combines with excellent appearance and sufficient airflow. Let it breathe through the front panel!

Excellent Looks with Superior Airflow

MX410 Mesh-G RGB’s front panel combines with excellent appearance and sufficient airflow. Let it breathe through the front panel!

Enjoy the Dazzling RGB Show

The integrated lighting button with built-in LED controller allows MX410 Mesh-G RGB to display amazing lighting effects. It can also work to a compatible motherboards’ 5V connection for system-wide lighting synchronization.

* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.

Enjoy the Dazzling RGB Show

* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.

Elegant Design with Massive Tempered Glass Left Panel

With the full-length PSU cover hides cables and a massive tempered glass left panel presents a clean and tidy build, you can easily build a pro-level system.

* Top fans and radiators are optional, specifications might vary depending on the country or region of sale.

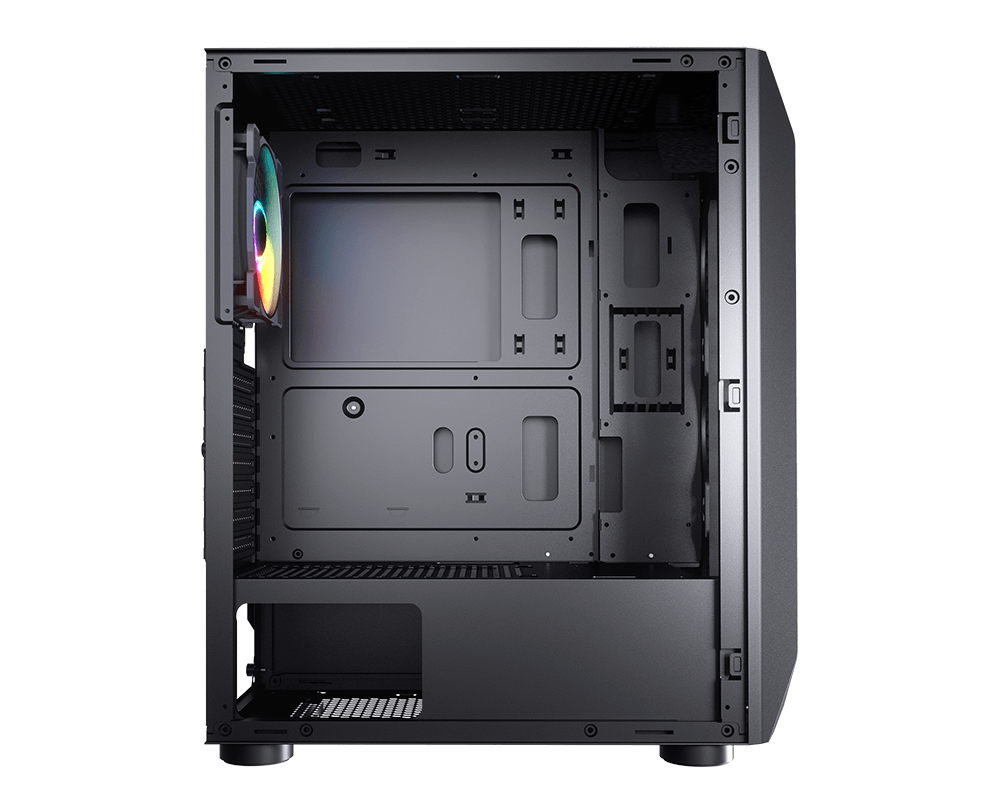

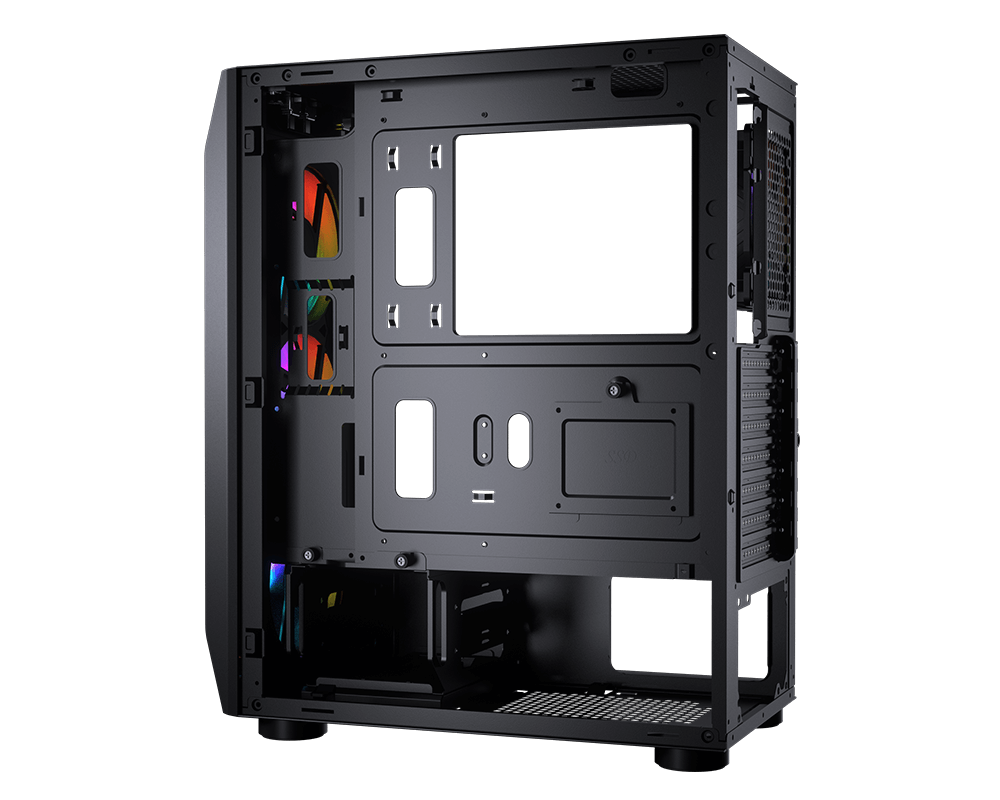

Wider but More Compact and Powerful

MX410 Mesh-G RGB’s 210mm width allows much larger interior space with better cooling performance and cable management. However, its compact exterior dimension takes up less desktop space. MX410 Mesh-G RGB can surely fit a full-sized ATX Motherboard, 300mm-length Graphic card, three 2.5” SSDs, and two 3.5” HDDs, which allow you to achieve the extreme operation and abundant storage space.

Abundant for Multiple USB Devices

The front panel is equipped with two USB 3.0 ports and two USB 2.0 ports, let you easily connect multiple peripheral devices and accessory charging. Not only optimize your processing experiences, but also keep all USB devices without limitations.

Strong Cooling Performance

MX410 Mesh-G RGB’s interior space supports up to 165mm height CPU air cooler, a 240mm water cooling radiator, and high-end cooling components. It helps you to protect critical components from overheating.

水冷散热系统

* Please choose either of front or top to install a 240mm radiator.

风扇散热系统

规格比较


Model Name		MX410 Mesh	MX410 Mesh-G	MX410 Mesh-G RGB	MX410	MX410-T	MX410-G RGB
Model No.		CGR-5VM6B-MESH	CGR-5VM6B-MESH-G	CGR-5VM6B-MESH-G-RGB	CGR-5VM6B	CGR-5VM6B-T	CGR-5VM6B-G-RGB
Front Panel		Mesh	Mesh	Mesh with ARGB strips	Acrylic with ARGB strips	Acrylic with ARGB strips	Acrylic with ARGB strips
I/O 接孔		USB3.0 x 2, USB2.0 x 2, Mic x 1 , Audio x 1, Reset Button	USB3.0 x 2, USB2.0 x 2, Mic x 1 , Audio x 1, Reset Button	USB 3.0 x 2, USB 2.0 x 2, Mic x 1 , Audio x 1, RGB Control Button	USB3.0 x 2, USB2.0 x 2, Mic x 1 , Audio x 1, RGB Control Button	USB 3.0 x 2, USB 2.0 x 2, Mic x 1 , Audio x 1, RGB Control Button	USB 3.0 x 2, USB 2.0 x 2, Mic x 1 , Audio x 1, RGB Control Button
Pre-installed Fans	前板	-	-	120mm x 3 (ARGB fans x 3 预装风扇)	-	-	120mm x 3 (ARGB fans x 3 预装风扇)
Pre-installed Fans	背板	120mm x 1 (Black fan x 1 预装风扇)	120mm x 1 (Black fan x 1 预装风扇)	120mm x 1 (ARGB fan x 1 预装风扇)	120mm x 1 (ARGB fan x 1 预装风扇)	120mm x 1 (ARGB fan x 1 预装风扇)	120mm x 1 (ARGB fan x 1 预装风扇)
Transparent Left Panel		None (Metal)	4mm Tempered Glass	4mm Tempered Glass	Acrylic	4mm Tempered Glass	4mm Tempered Glass
Onboard Lighting System		-	-	是	-	-	是
支援主机板RGB同步软体		-	-	是	-	-	是

全球媒体推荐

Neoseeker

"…I am glad to see that COUGAR outfitted this $60 USD case so generously. The front panel is also equipped with two RGB LED strips located on each side. Each strip is facing inwards with white mesh sheets serving as reflectors. This way, the lighting effects have a smoother feel when seen through the side vents from the front of the case…COUGAR equipped the MX410 Mesh-G RGB with an onboard controller that lets you control the RGB lighting of the case manually or through a compatible motherboard software. This will come in handy knowing that the case comes with 4x RGB fans and 2x RGB strips preinstalled. Great value right there for RGB fans that do not want to spend extra $$$ on RGB fans.."

规格

产品名称		MX410 Mesh-G RGB
机箱规格		中塔机箱
主板类型		Mini ITX / Micro ATX / ATX
尺寸 (宽x高x深)		210 x 455 x 380 (mm) 8.3 x 17.9 x 15 (in)
I/O 接孔		USB 3.0 x 2, USB 2.0 x 2, Mic x 1 / Audio x 1, RGB Control Button
3.5" 硬盘槽		2
2.5" 硬盘槽		3
扩充插槽		7
散热风扇兼容性	前板	120mm x 3 (ARGB fans x 3 预装风扇)
	上盖	120mm x 2
	背板	120mm x 1 (ARGB fan x 1 预装风扇)
最高风扇安装数量		6 Max.
水冷排兼容性	前板	*240mm / 120mm
	上盖	*240mm / 120mm (Max. component height on motherboard is 40mm)
	背板	120mm
最大显示卡长度		300 (mm) / 11.8 (in) (Only fans at the front panel) 270 (mm) / 10.6 (in) (Radiator with fans at the front panel) (横式显卡插槽相容于 RTX 3080/3070.)
CPU 风扇最大高度		165 (mm) / 6.5 (in)
电源供应器最大长度		160 (mm) / 6.3 (in)
灯效控制系统		Intergrated Lighting with Addressable RGB LEDs and Dynamic Lighting Effects in the Front Panel
支援主机板RGB同步软体		是

*Please choose either of front or top to install a 240mm radiator.

包装信息

产品料号 (P/N)		385VM70.0004
EAN 产品代码		4710483770623
UPC 产品代码		192554001982
JAN 产品代码		4541995034527
产品净重 (不含包装)		5.5 (kg)
产品毛重 (含包装)		6.5 (kg)
产品尺寸(不含包装) (宽x高x深)		210 x 455 x 380 (mm)
产品尺寸(含包装) (宽x高x深)		268 x 500 x 452 (mm)
