Elegant and Functional Mid-Tower

The MX330-S mid-tower case is a powerful new addition to COUGAR’s MX series. With an elegant look, a highly functional design and a durable construction, this case delivers great value for your money and a clear view of your computer’s internal components.

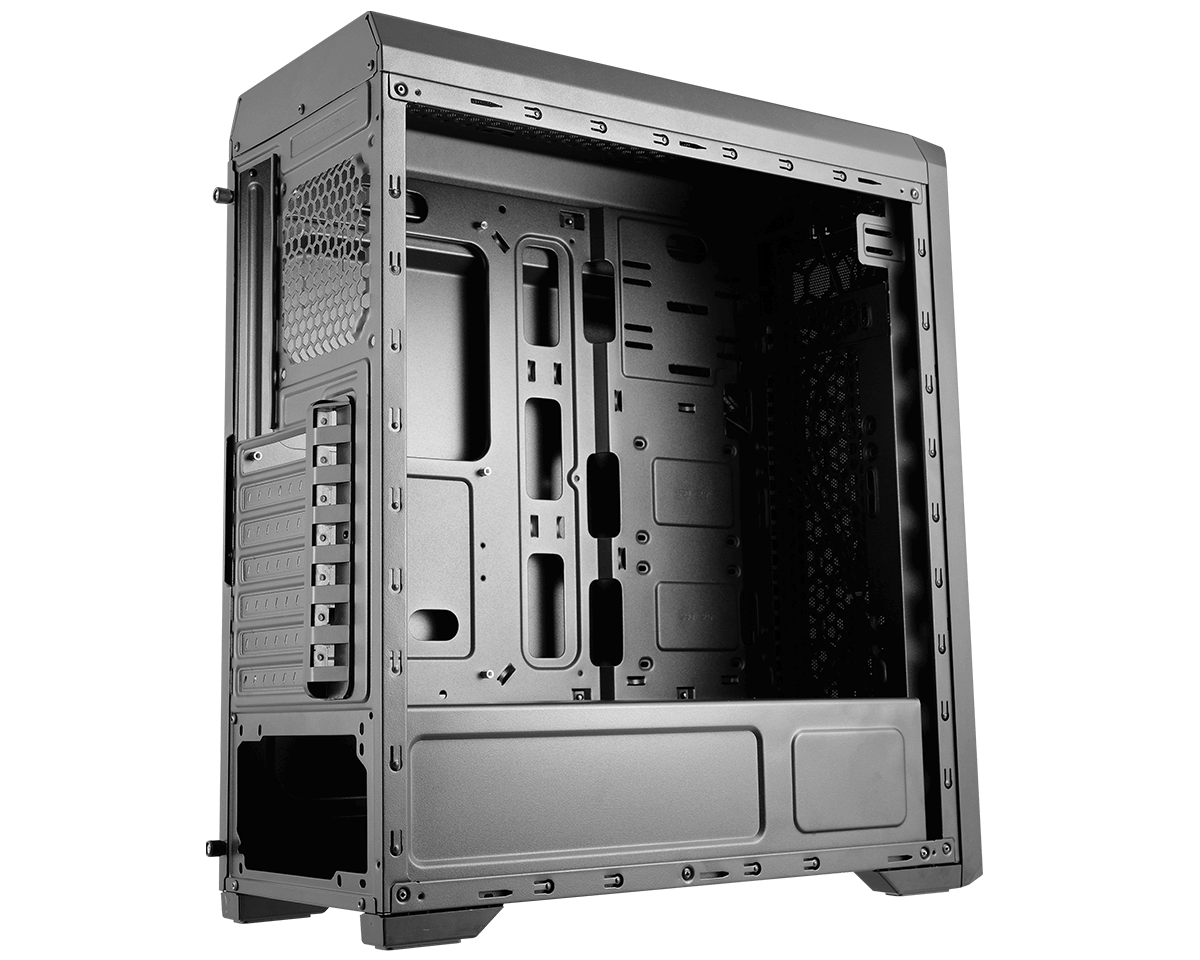

Extraordinary Transparent View

A beautiful side window acts as a portal into your PC’s interior. Ideal for those who want to set up internal lighting solutions and for modders.


Massive Expandability

MX330-S has seven PCI slots, allowing you to install multiple 350mm graphics cards to give you all the graphic horsepower your games require. You also get the ability to install up to two 2.5″ SSD and 3.5″ HDDs (for a maximum of four storage devices) to satisfy your storage needs.
Supports full-sized graphics cards up to 350mm
2.5” SSD x 2
3.5” HDD x 2

Outstanding Airflow

Support for a 240mm front radiator and five fans make good cooling for high-end components possible in MX330-S, which is made even better by a convenient design that eases cleaning, with detachable dust filters on the front, top and bottom covers.
Air cooling support​

Minimalist Beauty

The case’s PSU and 3.5” bay cover provide a clean view of your case and keep the airflow strong.


Model Name MX330-S
机箱规格 Mid-Tower
Dimension (WxHxD) 195 x 473 x 427 (mm)
7.7 x 18.6 x 16.8 (in)
主板类型 Mini-ITX / Micro ATX / ATX
5.25" Drive Bay 1
3.5" 硬盘槽 2
2.5" 硬盘槽 2+2 ( 3.5” 硬盘槽可转换为2个2.5” 硬盘槽)
I/O 接孔 USB3.0 x 2 / USB2.0 x 2 / Mic x 1 / Audio x 1
Maximum Number of Fans 5 max.
Cooling System 前板 120mm x 2
上盖 120mm x 2
背板 120mm
水冷排兼容性 前板 240mm
上盖 120mm
背板 120mm
预装风扇 背板 LED Fan x 1
Cable Management
扩充插槽 7
最大显示卡长度 350mm / 13.78 (in)
(横式显卡插槽相容于 RTX 3090/3080/3070.)
CPU 风扇最大高度 155mm / 6.1 (in)
Transparent Side Panel Left side panel
电源供应器 Standard ATX PS2
电源供应器最大长度 200 (mm) / 7.9 (in)
