DarkBlader-S
Premium and Stylish ARGB Full Tower Case
DarkBlader-S
Premium and Stylish ARGB Full Tower Case
Distinctive Style with Elegant Design
DarkBlader-S’s brushed aluminum front panel and asymmetrical design bring a unique and modern style to your build.
Distinctive Style with Elegant Design
DarkBlader-S’s brushed aluminum front panel and asymmetrical design bring a unique and modern style to your build.
Enjoy the Dazzling RGB Show
The integrated lighting button with built-in LED controller allows DarkBlader-S to display amazing lighting effects. It can also work to a compatible motherboards’ 5V connection for system-wide lighting synchronization. The powerful lights come out of stylish panel and the reflective surroundings helps reinforce the RGB effects.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.

Enjoy the Dazzling RGB Show
The integrated lighting button allows DarkBlader-S to display amazing lighting effects. It can also work to a compatible motherboards’ 5V connection for system-wide lighting synchronization. The powerful lights come out of stylish panel and the reflective surroundings helps reinforce the RGB effects.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.

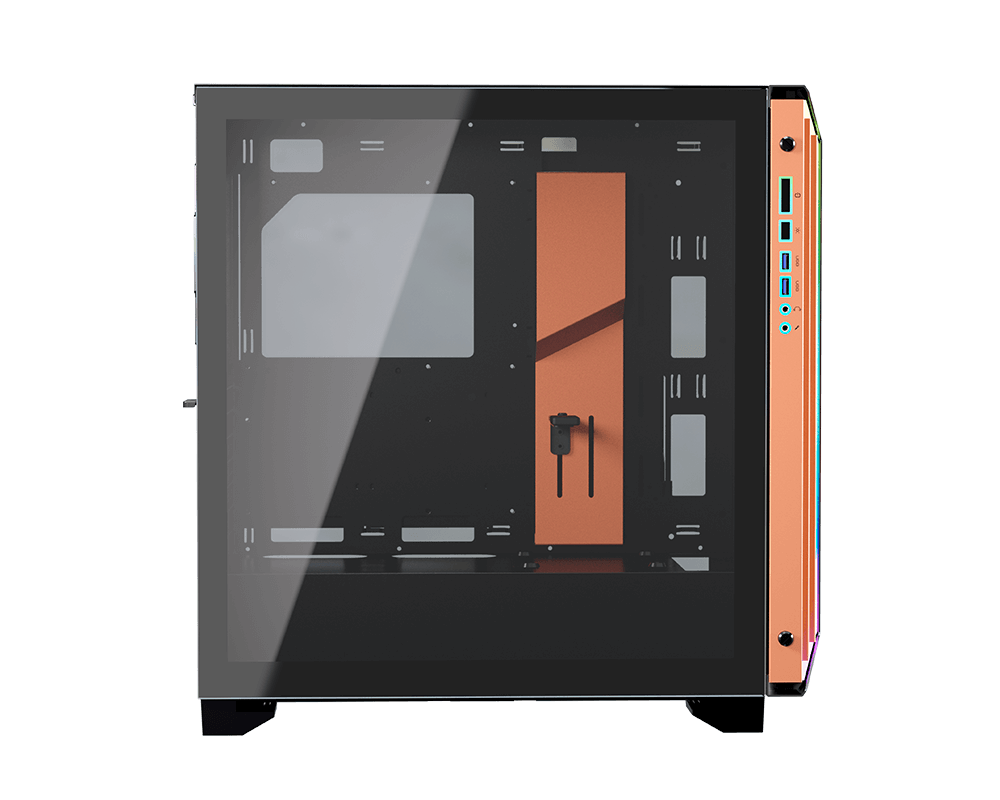

Massive Visibility
The full tempered glass panels not only help you to display the interior high-end components, but also showcase the stunning RGB lighting.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.
Massive Visibility
The full tempered glass panels not only help you to display the interior high-end components, but also showcase the stunning RGB lighting.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.

Ultimate Cable Management
The cable management bar at the left side and the cable management cover at the other side provide a clean view and excellent airflow. Moreover, the graphic card holder helps your high-performance components with better stability.

Top-notch Gaming Hardware
To offer top-notch performance, DarkBlader-S is able to house a mighty build. Its excellent support for high-end graphics cards and up to E-ATX motherboards bring you unprecedented levels of freedom when designing your system.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.
Top-notch Gaming Hardware
To offer top-notch performance, DarkBlader-S is able to house a mighty build. Its excellent support for high-end graphics cards and up to E-ATX motherboards bring you unprecedented levels of freedom when designing your system.
* ARGB fans are optional, specifications might vary depending on the country or region of sale.
Superior Cooling
DarkBlader-S allows you to create impressive cooling solutions. With great support for up to 360mm water cooling radiator and seven fans, you will enjoy more than enough cooling horsepower to keep advanced components safe from overheating.
水冷散热系统


* Choose either of front or top to install a 360mm radiator.
风扇散热系统


全球媒体推荐

FunkyKit
"... The Cougar DarkBlader-S RGB has a lot to offer and I wouldn’t hesitate recommending it! The sleek design, beautiful ambient lighting, and extreme cooling capabilities, makes the Cougar DarkBlader-S RGB a builder’s paradise. "

Proclockers.com
"The Dark Blader S has space to let your creativity loose and put together a powerful build. The dimensions of this case give you the freedom to install any mobo from a Mini-ITX up to an E-ATX. Depending on your build, there is also plenty of space to get creative with your cooling…"
规格
产品名称 | DarkBlader-S | |
---|---|---|
机箱规格 | 全塔机箱 | |
尺寸 (宽x高x深) | 232 x 523 x 518 (mm) 9.13 x 20.59 x 20.39 (in) |
|
Motherboard Formats | Mini ITX / Micro ATX / ATX / CEB / **E-ATX | |
I/O 接孔 | USB 3.0 x 2 / Mic x1 / Audio x1 / RGB Control Button x1 | |
3.5" 硬盘槽 | 4 max. | |
2.5" 硬盘槽 | 4 max. | |
扩充插槽 | 8+2 | |
散热风扇兼容性 | 前板 | 140mm x 3 / 120mm x 3 |
上盖 | 140mm x 2 / 120mm x 3 | |
背板 | 120mm x 1 (预装风扇) | |
最高风扇安装数量 | 7 Max. | |
水冷排兼容性 | 前板 | *360mm / 280mm / 240mm / 140mm / 120mm |
上盖 | *360mm / 280mm / 240mm / 140mm / 120mm | |
背板 | 120mm | |
最大显示卡长度 | 380 (mm) / 15 (in) (横式显卡插槽相容于 RTX 3090/3080/3070.) |
|
CPU 风扇最大高度 | 170 (mm) / 6.7 (in) | |
电源供应器最大长度 | 200 (mm) / 7.9 (in) | |
灯效控制系统 | Intergrated Lighting with Addressable RGB LEDs and Dynamic Lighting Effects in the Front Panel |
** Please remove the cable bar before installing an E-ATX motherboard.
* Choose either of front or top to install a 360mm radiator.
包装信息
产品料号 (P/N) | 3858M30.0001 | |
---|---|---|
EAN 产品代码 | 4715302444976 | |
UPC 产品代码 | 192554001579 | |
JAN 产品代码 | 4541995034176 | |
产品净重 (不含包装) | 14.2 (kg) | |
产品毛重 (含包装) | 16.3 (kg) | |
产品尺寸(不含包装) (宽x高x深) | 232 x 518 x 523 (mm) | |
产品尺寸(含包装) (宽x高x深) | 334 X 610 x 618 (mm) |
