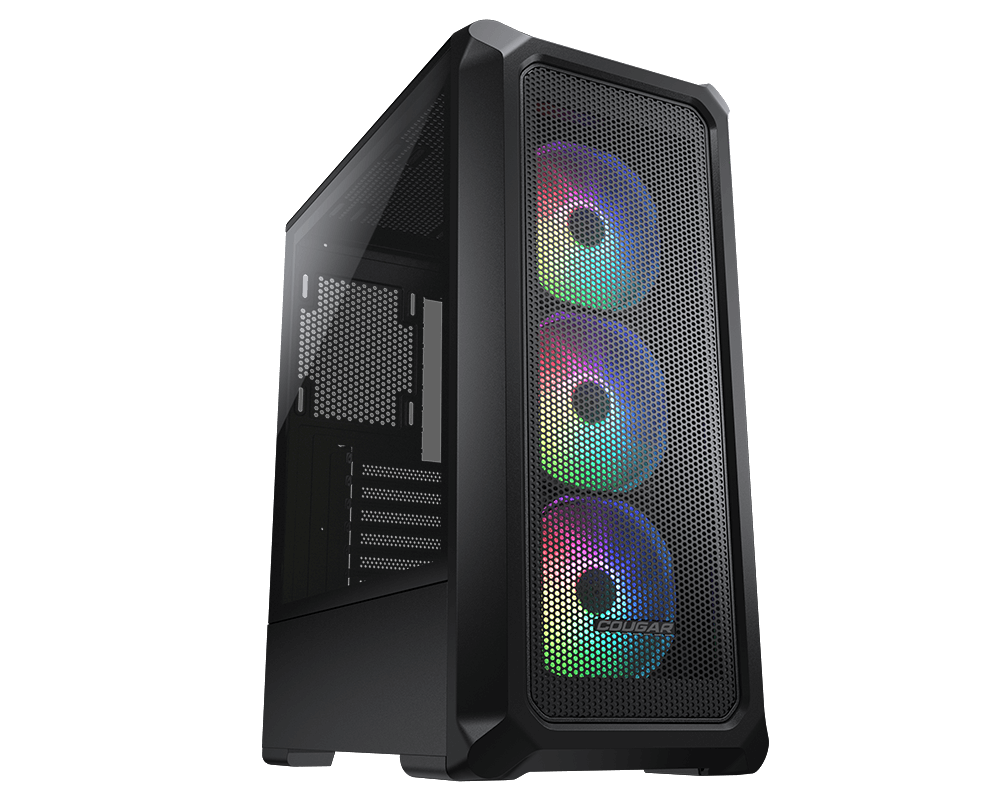

Archon 2 Mesh RGB

Elegant ARGB Mid Tower Case with Powerful Mesh Intakes

Archon 2 Mesh RGB sports an attractive and elegant design with three ARGB fans at the front panel. The integrated lighting button allows it to display amazing lighting effects. Powerful airflow, mighty support for up a 360mm radiator, a 315mm graphic card, and a 170mm CPU cooler deliver superior value for you.

Archon 2 Mesh RGB

Elegant ARGB Mid Tower Case with Powerful Mesh Intakes

Archon 2 Mesh RGB sports an attractive and elegant design with three ARGB fans at the front panel. The integrated lighting button allows it to display amazing lighting effects. Powerful airflow, mighty support for up a 360mm radiator, a 315mm graphic card, and a 170mm CPU cooler deliver superior value for you.

Elegant Looks with Superior Airflow

Archon 2 Mesh RGB’s front panel combines with excellent appearance and unobstructed airflow. The breathable steel mesh brings powerful cooling performance while keeping dust from getting in through.

Incredible RGB Lighting

Archon 2 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the dedicated RGB button. The ARGB fans are also adaptable with any compatible motherboards’ 5V ARGB connection for system-wide lighting synchronization.

Incredible RGB Lighting

Archon 2 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the dedicated RGB button. The ARGB fans are also adaptable with any compatible motherboards’ 5V ARGB connection for system-wide lighting synchronization.

Great Support for Components

Its advanced support for up to 315mm-long graphics cards, which allows you to enjoy the latest games with smooth framerates.

Great Support for Components

Its advanced support for up to 315mm-long graphics cards, which allows you to enjoy the latest games with smooth framerates.

Clean and Tidy Looks

Unlike most massive tempered glass panels, the full-length PSU shroud presents a distinctive view of divided design. The full-length PSU cover also allows you to hide the cables, improve the internal airflow, and showcase a clean build!

Top-notch Cooling

Archon 2 Mesh RGB’s compact layout allows you to install six fans, a 360mm water cooling radiator, and a 170mm CPU cooler. This immense cooling potential will enable you to choose components freely.

Top-notch Cooling

Archon 2 Mesh RGB’s compact layout allows you to install six fans, a 360mm water cooling radiator, and a 170mm CPU cooler. This immense cooling potential will enable you to choose components freely.

水冷散热系统

风扇散热系统

规格比较

  COUGAR Archon 2 Mesh RGB Gaming Case COUGAR Archon 2 RGB Gaming Case
Model Name Archon 2 Mesh RGB
( Black / White )
Archon 2 RGB
( Black / White )
Model No. CGR-5CC5B-MESH-RGB / CGR-5CC5W-MESH-RGB CGR-5CC5B-G-RGB / CGR-5CC5W-G-RGB
Front Panel Mesh Tempered Glass
I/O 接孔 USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
Pre-installed Fans Front:
120mm ARGB fan x 3 pre-installed
支援主机板RGB同步软体
Transparent Left Panel 3mm Tempered Glass

规格

产品名称 Archon 2 Mesh RGB (Black / White)
机箱规格 中塔机箱
主板类型 Mini ITX / Micro ATX / ATX
尺寸 (宽x高x深) 210 x 470 x 380 (mm)
8.3 x 18.5 x 15 (in)
I/O 接孔 USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
3.5" 硬盘槽 2
2.5" 硬盘槽 2+1 (converted from 3.5" drive bay) / ( 内附2个 SSD 硬盘架 )
扩充插槽 7
散热风扇兼容性 前板 120mm x 3 / 140mm x 2 (120mm ARGB fan x 3 预装风扇)
上盖 120mm x 2 / 140mm x 2
背板 120mm x 1
最高风扇安装数量 6 Max.
水冷排兼容性 前板 *360mm / 280mm / 240mm / 140mm / 120mm
上盖 240mm / 120mm
背板 120mm
Transparent Left Panel 3mm Tempered Glass
RGB Sync with M/B
最大显示卡长度 315 (mm) / 12.4 (in)
CPU 风扇最大高度 170 (mm) / 6.7 (in)
电源供应器最大长度 *160 (mm) / 6.3 (in)
* When install a 360mm radiator at the front, the maximum PSU length is 140mm.

包装信息

Black White
产品料号 (P/N) 385CC50.0001 385CC50.0002
EAN 产品代码 4710483773013 4710483773020
UPC 产品代码 192554003894 192554003900
JAN 产品代码 4541995036385 4541995036392
产品净重 (不含包装) 4.95 (kg) 5 (kg)
产品毛重 (含包装) 5.85 (kg) 5.9 (kg)
产品尺寸(不含包装) (宽x高x深) 210 x 470 x 380 (mm)
产品尺寸(含包装) (宽x高x深) 267 x 442 x 521 (mm)
