MX410-T

Powerful and Compact Mid-Tower Case with Dual RGB Strips

MX410-T sports an attractive and compact design with dual RGB strips at the front panel. With a massive tempered glass left panel, MX410-T showcases a clean and tidy build. It has wider but more compact and powerful design, which allows you to have high-performance and abundant storage space.
COUGAR MX410-T

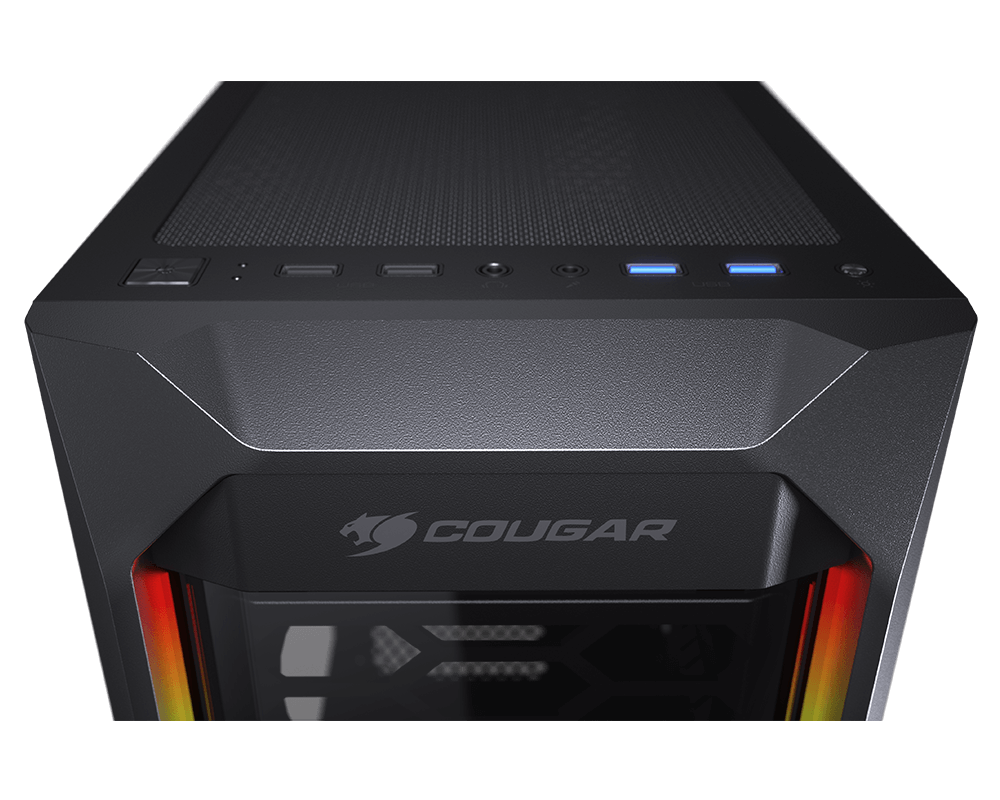

Stylish Dual RGB Strips

MX410-T integrates RGB lighting strips and air vents at the front panel. It brings you more stylish design and more RGB lighting effects.

COUGAR MX410-T - 小型机箱

Elegant Design with Massive Tempered Glass Left Panel

With the full-length PSU cover hides cables and a massive tempered glass left panel presents a clean and tidy build, you can easily build a pro-level system.

Wider but More Compact and Powerful

MX410-T's 210mm width allows much larger interior space with better cooling performance and cable management. However, its compact exterior dimension takes up less desktop space. MX410-T can surely fit a full-sized ATX Motherboard, 300mm-length Graphic card, three 2.5″ SSDs, and two 3.5″ HDDs, which allow you to achieve the extreme operation and abundant storage space.

COUGAR 小型机箱 - MX410-T

Strong Cooling Performance

MX410-T's interior space supports up to 165mm height CPU air cooler, a 240mm water cooling radiator, and high-end cooling components. It helps you to protect critical components from overheating.

水冷散热系统
COUGAR 小型机箱 - MX410-T

※ Please choose either of front or top to install a 240mm radiator.

COUGAR 小型机箱 - MX410-T
风扇散热系统
COUGAR 小型机箱 - MX410-T

COUGAR 小型机箱 - MX410-T

规格


COUGAR MX410 Mesh Gaming Case
COUGAR MX410 Gaming Case
COUGAR MX410-T Gaming Case
Model Name MX410 Mesh MX410 MX410-T
Model No. CGR-5VM6B-MESH CGR-5VM6B CGR-5VM6B-T
Front Panel Mesh Acyrlic with RGB strips Acyrlic with RGB strips
I/O Panel USB3.0 x 2, USB2.0 x 2, Mic x 1
/ Audio x 1, Reset Button
USB3.0 x 2, USB2.0 x 2, Mic x 1
/ Audio x 1, RGB Control Button
USB 3.0 x 2, USB 2.0 x 2, Mic x 1
/ Audio x 1, RGB Control Button
Pre-installed Fans
Rear
120mm x 1
(Black fan x 1 pre-installed)
120mm x 1
(Black fan x 1 pre-installed)
120mm x 1
(RGB fan x 1 pre-installed)
Transparent Left Panel None (Metal) Acrylic 4mm Tempered Glass

规格

Product Name MX410-T
Model No. CGR-5VM6B-T
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
Dimensions (WxHxD) 210 x 455 x 380 (mm)
8.3 x 17.9 x 15 (in)
I/O Panel USB 3.0 x 2, USB 2.0 x 2, Mic x 1 / Audio x 1, RGB Control Button
3.5" Drive Bay 2
2.5" Drive Bay 3
Expansion Slots 7
Cooling Fan Support Front 120mm x 3
Top 120mm x 2
Rear 120mm x 1 (RGB fan x 1 pre-installed)
Maximun Number of Fans 6 Max.
Water Cooling Support Front *240mm / 120mm
Top *240mm / 120mm (Max. component height on motherboard is 40mm)
Rear 120mm
Transparent Left Panel 4mm Tempered Glass
Max. Graphics Card Length 300 (mm) / 11.8 (in) (Only fans at the front panel)
270 (mm) / 10.6 (in) (Radiator with fans at the front panel)
Max. CPU Cooler Height 165 (mm) / 6.5 (in)
Max. PSU length 160 (mm) / 6.3 (in)
*Please choose either of front or top to install a 240mm radiator.

包装信息

Product Number (P/N) 385VM60.0003
EAN CODE 4710483770456
UPC CODE 192554001876
JAN CODE 4541995034442
Individual Size W/O Packaging Weight (N.Weight) 5.5 (kg)
Individual Packaging Weight (G.Weight) 6.5 (kg)
Individual Size W/O Packaging (WxHxD) 210 x 455 x 380 (mm)
Individual Packaging Size (WxHxD) 268 x 500 x 452 (mm)
